CO₂ transport and storage

The regional CO₂ storage potential assumed in TIAM-FR are as Table 1 shows. They correspond to the lower estimate of Kearns et al. (2017).

Table 1: Assumed regional CO₂ storage potentials in TIAM-FR (Kearns et al., 2017)

	Onshore	Offshore
AFR	1543	9444
AUS	1835	2349
CAN	790	1445
CHI	544	2286
CSA	1660	4683
EEU	495	565
FSU	876	11207
IND	172	525
JPN	34	26
MEA	851	2603
MEX	411	556
ODA	1831	2058
SKO	24	0
USA	1836	3872
WEU	495	565

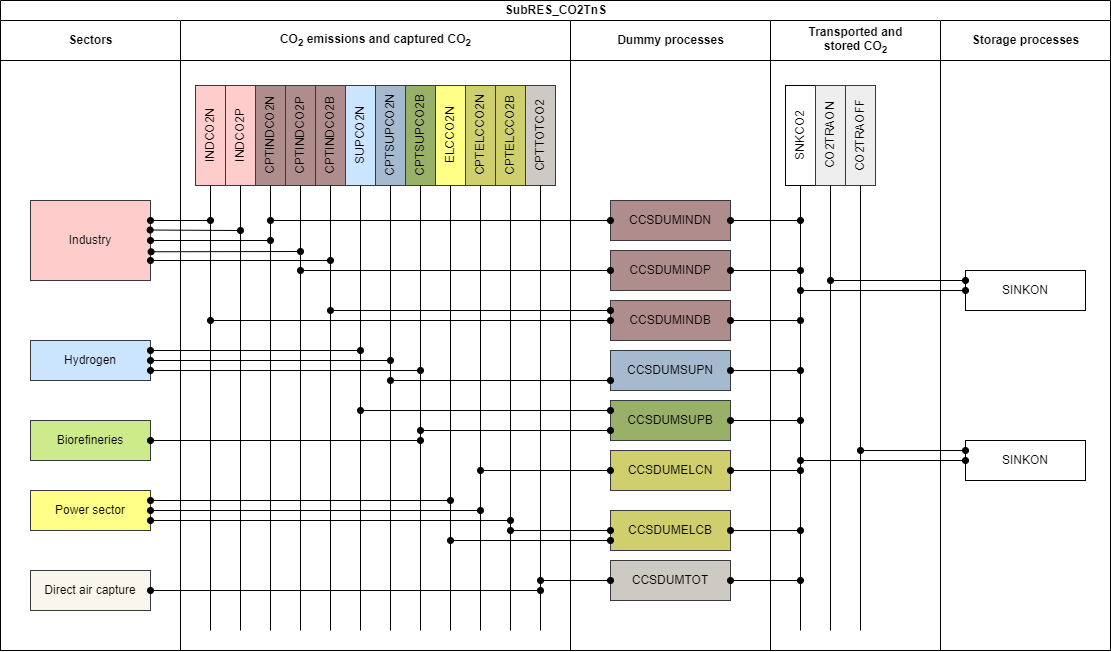

CO₂ capture opportunities are available in TIAM-FR in the industry sector, hydrogen generation, biofuels generation, power generation, and for direct air capture, thus delivering three types of CO₂ commodity: fossil, process, biogenic or atmospheric. Both biogenic and atmospheric CO₂ are classified as climate-neutral CO₂. In Figure 1, these commodities are respectively colored in orange, grey, and green. Dummy processes - labeled generically with CCSDUM prefix - aggregate all captured CO₂ types into a single commodity labeled SNKCO2, as described in the CO₂ accounting section, such that any SNKCO2 generated by the dummy processes is eliminated in a storage process, either onshore (SINKON) or offshore (SINKOFF). Regarding the transport of CO₂, there is actually no process to represent it physically. However, to eliminate the CO₂ (SNKCO2), the system must pay for the transport and storage, whose cost are shown in Table 2 and assumed from Smith et al. (2021).

To realistically model the operations of CO₂ storage, a constraint on the CO₂ injection rate limits the annual activity of CO₂ storage processes. This rate of 2.6% (Jahediesfanjani et al., 2018) is consistent with the average injection rates of a well over its economic lifetime Finally, we consider that the exchange of captured CO₂ between countries is allowed by international regulations under the London Protocol (IEAGHG, 2021). As some of the regions in the model are country-aggregated (e.g., WEU, AFR, CSA, etc.), it is important to assume that countries can store CO₂ in a different country from where it was emitted and captured.

References

Kearns, J., Teletzke, G., Palmer, J., Thomann, H., Kheshgi, H., Chen, Y.-H.H., Paltsev, S., Herzog, H., 2017. Developing a Consistent Database for Regional Geologic CO2 Storage Capacity Worldwide. Energy Procedia, 13th International Conference on Greenhouse Gas Control Technologies, GHGT-13, 14-18 November 2016, Lausanne, Switzerland 114, 4697–4709. https://doi.org/10.1016/j.egypro.2017.03.1603
Smith, E., Morris, J., Kheshgi, H., Teletzke, G., Herzog, H., Paltsev, S., 2021. The cost of CO2 transport and storage in global integrated assessment modeling. International Journal of Greenhouse Gas Control 109, 103367. https://doi.org/10.1016/j.ijggc.2021.103367
Jahediesfanjani, H., Warwick, P.D., Anderson, S.T., 2018. Estimating the pressure-limited CO2 injection and storage capacity of the United States saline formations: Effect of the presence of hydrocarbon reservoirs. International Journal of Greenhouse Gas Control 79, 14–24. https://doi.org/10.1016/j.ijggc.2018.09.0117
IEAGHG, 2021. IEAGHG, Exporting CO2 for Offshore Storage – The London Protocol’s Export Amendment and Associated Guidelines and Guidance (No. 2021-TR02).
